Állószekrények

19" ÁLLVÁNYSZEKRÉNY SZABADON ÁLLÓ 15U/600X600 ÜVEGAJTÓVAL FEKETE (ÖSSZESZERELVE)

Gyártó kód: FA01-6615-12B
EAN: 5901969437614
Garancia: 36m
A szekrény típusa: Szabadon álló
Méret: 19"
ICT magasság: 15 U
Összeszerelés típusa: Összeszerelt
Termékleírás

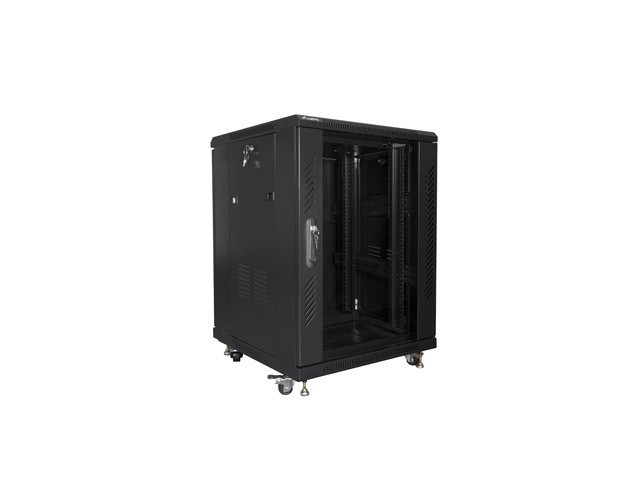

Assembled freestanding Lanberg cabinet FA01-6615-12B, is a solution designed to expand networks, installation of cabling and equipment in size 19” with max. 800kg. loading capacity.

It can be used in networks, server rooms, small, medium businesses and data centers which needs lot of space in cabinet for network equipment's. It can also work in low voltage systems such as cable television networks, alarm systems, fire protection systems and access control systems, CCTV and IP surveillance.

Construction is made of high grade cold rolled steel which characterized by excellent design and high quality of craftsmanship. The cabinet allows full adjustment of the depth of the vertical mounting rails. It is equipped with front tempered glass door with lock and possibility installing on right or left side. It has removable side panels (include locks) and rear solid steel door with lock.

You can put the wiring through entry cable on top and bottom panels (with blank entry panels). The fan tray include 2 fans 230V. In addition, parcel includes additional accessories for rails mounts, M6 cage nuts and blank entry panels.
Construction of the enclosure COMPLETED.

Features:
- Manufacturer: Lanberg,
- Manufacturer's code: FA01-6615-12B,
- Cabinet type: Free standing,
- Body color: Black RAL9004,
- Height: 15U,
- Cabinet dimensions (W x D x H): 600x600x848 mm,
- Height (top panel - bottom panel): 769 mm,
- Height (top panel - ground): 842 mm,
- Height (top panel - ground including screws): 848 mm,
- Floor panel: 4 castors with brake + adjustable legs,
- Internal width spacing between rack rails: 450 mm,
- Width of the spacing between holes of rack rails: 465 mm,
- External width spacing between rack rails: 500 mm,
- Loading capacity: To 800 KG,
- Degree of protection: IP20,
- Top with fan tray: included 2 fans 230V in top cover,
- Doors type: Front - Temper glass, Rear - Steel,
- Standard: ANSI/EIA RS-310D, IEC297-2, DIN41494; PART1 & PART7, ETSI,
- Material: High grade cold rolled steel, powder coated,
- Cable entry panel: Top, Bottom (adjustable),
- Included: Accessory bag, locks for front and rear doors and two side panels, 20 cage nuts M6, Ventilation Panel (2 fans).

A szekrény típusa
Szabadon álló
Méret
19"
ICT magasság
15 U
Összeszerelés típusa
Összeszerelt
Munkamélység
520 mm
Első ajtó típusa
Hőmérsékelt üveg
Hátsó ajtó típusa
Fém
Ajtó típusa
Egylevelű
Maximális elülső ajtónyílási szög
215 °
Maximális statikus terhelés
800 kg
Slot összeg a rajongók számára
2
Függőleges sínek száma
4
Termosztát
Nem
LCD panel
Nem
Színes
Fekete
RAL szín
RAL9004
Időjárásálló minősítés
IP20
Első ajtó vastagsága
5 mm
Hátsó ajtó vastagsága
1 mm
Felső és alsó panel vastagsága
1.2 mm
Oldalpanel vastagság
1.2 mm
Szerelősínek vastagsága
2 mm
Vázvastagság
1.2 mm
Egyéb elemek lemezvastagság
1.2 mm
Mélység
600 mm
Szélesség
600 mm
Magasság
848 mm
Súly
45.5 kg
Standard
ANSI/EIA RS-310-D, DIN 41491/1. RÉSZ, DIN 41494/7. RÉSZ, ETSI, IEC297-2:1982
Tartalmazott tartozékok
Első zár, Hátsó zár, Kerekek fékkel, Lábak, Oldalzárak, Szellőzőpanel (2 ventilátor)

Fájlok letöltése

Gyors útmutató (többnyelvű)
Termékkártya EN
Termékkártya PL
Megfelelőségi nyilatkozat (többnyelvű)
