Állószekrények

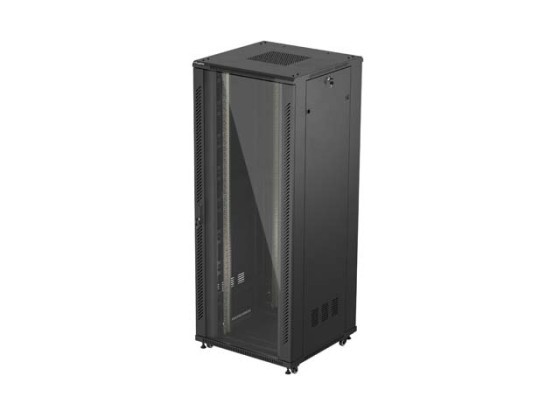

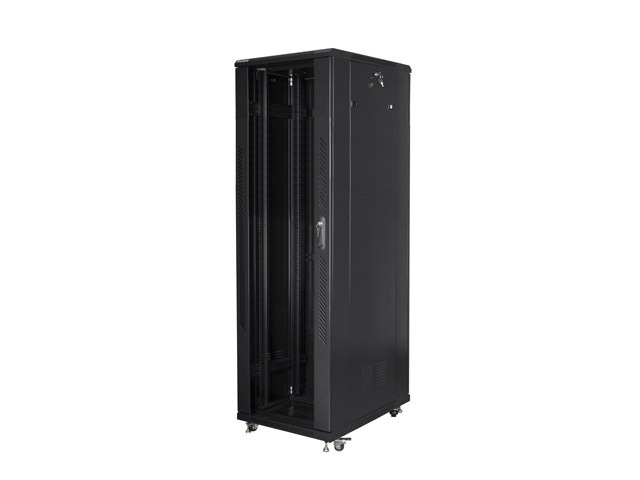

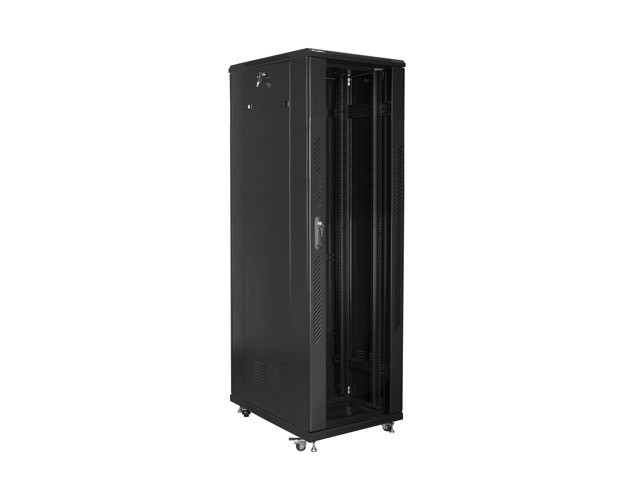

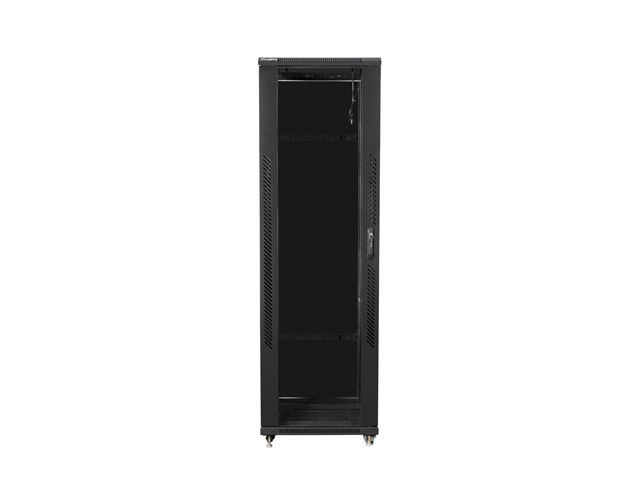

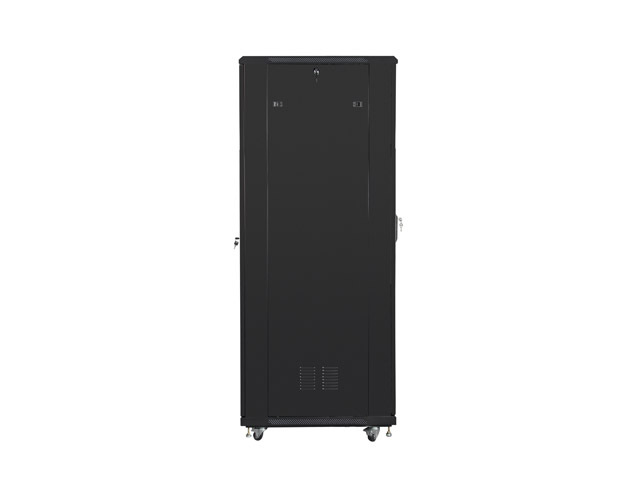

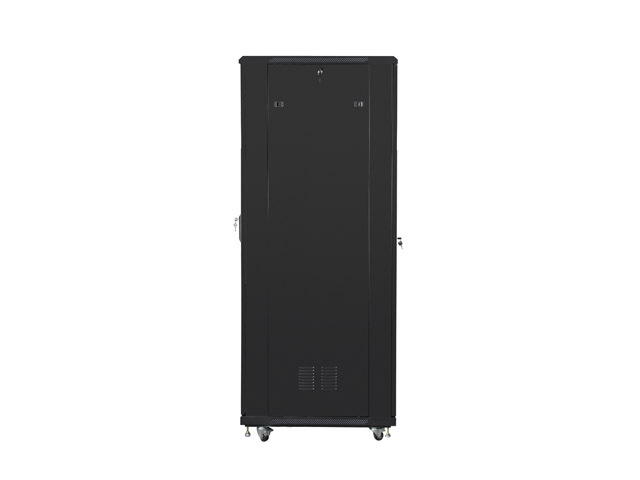

19" ÁLLVÁNYSZEKRÉNY SZABADON ÁLLÓ 42U/800X800 ÜVEGAJTÓVAL FEKETE (ÖSSZESZERELVE)

Gyártó kód: FA01-8842-12B
EAN: 5901969437591
Garancia: 36m
A szekrény típusa: Szabadon álló
Méret: 19"
ICT magasság: 42 U
Összeszerelés típusa: Összeszerelt
Termékleírás
Assembled freestanding Lanberg cabinet FA01-8842-12B, is a solution designed to expand networks, installation of cabling and equipment with a size of 19” and max. 800kg of loading capacity. It can be used in networks, server rooms, small, medium businesses and data centers which needs lot of space in cabinet for network equipment.

On top of that, this particular cabinet can also work in low voltage systems, such as cable TV networks, alarm systems, fire protection and access control systems, CCTV or IP surveillance.

Product construction is made of high grade cold rolled steel which is characterized by an excellent design and high quality of craftsmanship. The cabinet allows full adjustment of the depth of the vertical mounting rails. Additionally, it is equipped with front tempered glass door with lock and possibility of installing those doors on right or left-hand side.

This server product has removable side panels (each including lock) and rear doors made of solid steel with a lock. You can put the wiring through entry cable panels, located on top and bottom (with blank entry panels) of the cabinet. The fan tray includes 4 230V fans.

Lastly, packaging includes additional accessories for rails mounts, M6 cage nuts and blank entry panels.

Features:
- Manufactuer: Lanberg,
- Manufactuer code: FA01-8842-12B,
- Cabinet type: Free-standing,
- Color: Black RAL9004,
- Height: 42U,
- Cabinet dimensions (W x D x H): 800x800x2047.5 mm,
- Height (top panel - bottom panel): 1968.5 mm,
- Height (top panel - ground): 2041.5 mm,
- Height (top panel - ground including screws): 2047.5 mm,
- Floor panel: 4 castors with brake + adjustable legs,
- Internal width spacing between rack rails: 450 mm,
- Width of the spacing between holes of rack rails: 465 mm,
- External width spacing between rack rails: 500 mm,
- Loading capacity: To 800 KG,
- Degree of protection: IP20,
- Top with fan tray: included 4 fans 230V in top cover,
- Doors type: Front - Temper glass, Rear - Steel,
- Standard: ANSI/EIA RS-310D, IEC297-2, DIN41494; PART1 & PART7, ETSI,
- Material: High grade cold rolled steel, powder coated,
- Glass thickness: 5.0 mm,
- Sheet thickness: vertical mounting rails - 2,00 mm; mounting profile - 2,00 mm; others - 1,50 mm - 1,20 mm,
- Cable entry panel: Top, Bottom (adjustable),
- Packaging includes: Accessory bag, locks for front and rear doors and two side panels, 2 vertical cable management panels,ventilation panel, feet, casters with brakes.

A szekrény típusa
Szabadon álló
Méret
19"
ICT magasság
42 U
Összeszerelés típusa
Összeszerelt
Munkamélység
600 mm
Első ajtó típusa
Hőmérsékelt üveg
Hátsó ajtó típusa
Fém
Ajtó típusa
Egylevelű
Maximális elülső ajtónyílási szög
215 °
Maximális statikus terhelés
800 kg
Slot összeg a rajongók számára
4
Függőleges sínek száma
4
Termosztát
Nem
LCD panel
Nem
Színes
Fekete
RAL szín
RAL9004
Időjárásálló minősítés
IP20
Első ajtó vastagsága
5 mm
Hátsó ajtó vastagsága
1.2 mm
Felső és alsó panel vastagsága
1.2 mm
Szerelősínek vastagsága
2 mm
Vázvastagság
1.2 mm
Egyéb elemek lemezvastagság
1.2 mm
Mélység
800 mm
Szélesség
800 mm
Magasság
2050 mm
Súly
114 kg
Standard
ANSI/EIA RS-310-D, DIN 41491/1. RÉSZ, DIN 41494/7. RÉSZ, ETSI, IEC297-2:1982
Tartalmazott tartozékok
Első zár, Függőleges kábelkezelő panel x2, Hátsó zár, Kerekek fékkel, Lábak, Oldalzárak, Szellőzőpanel (4 ventilátor)

Fájlok letöltése

Termékkártya EN
Termékkártya PL
Megfelelőségi nyilatkozat PL
