Állószekrények

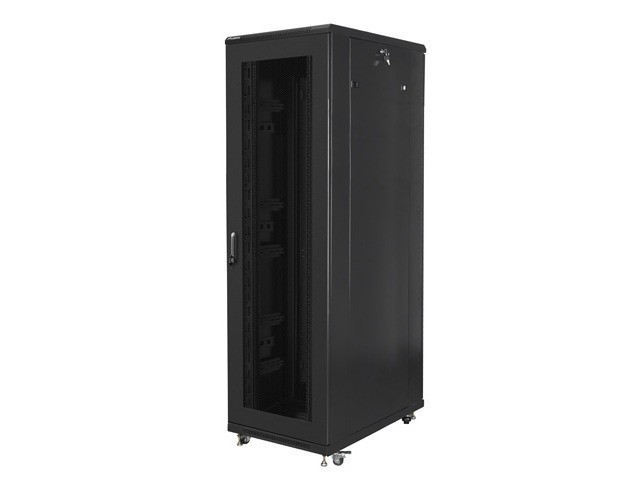

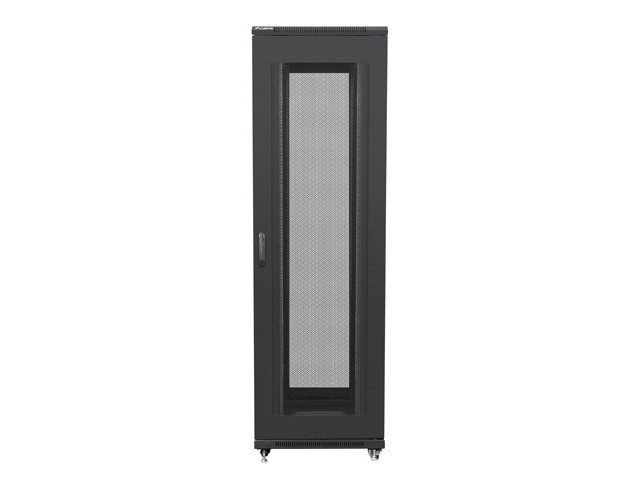

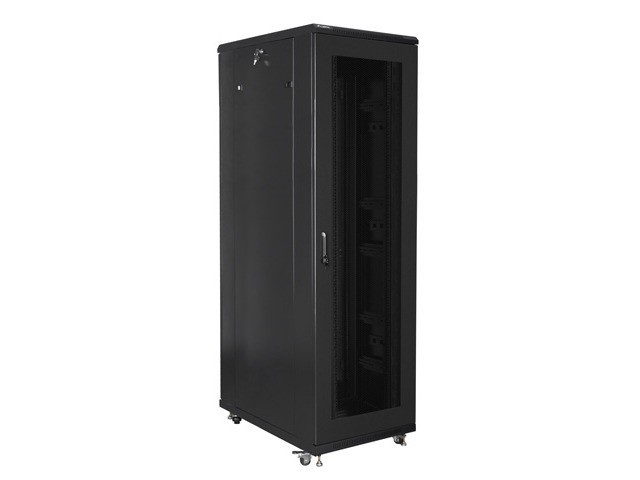

19" ÁLLVÁNYSZEKRÉNY SZABADON ÁLLÓ 42U/800X1000 PERFORÁLT AJTÓVAL FEKETE (ÖSSZESZERELVE)

Gyártó kód: FA01-8042-23B
EAN: 5901969441048
Garancia: 36m
A szekrény típusa: Szabadon álló
Méret: 19"
ICT magasság: 42 U
Összeszerelés típusa: Összeszerelt
Termékleírás
Lanberg FA01-8042-23B composite freestanding cabinet is a ready-made solution for network expansion, installation of cabling and equipment with a size of 19" and a maximum load capacity of 800 kg. It can be used in networks, server rooms, small and medium-sized businesses and data centers that need a lot of rack space for network equipment.

What's more, this particular cabinet can also work with low-voltage systems such as cable TV networks, alarm systems, fire and access control systems, CCTV or IP surveillance.

The structure of the product is made of high-quality cold-rolled steel, which is characterized by excellent design and high quality workmanship. The cabinet allows full depth adjustment of the vertical mounting rails. In addition, it is equipped with a front perforated door with a lock and the possibility of mounting this door on the right or left side.

This server product has removable side panels (each with a lock) and a rear perforated door with a lock. Cabling can be routed through the cable holes located at the top and bottom (with blank entry panels) of the cabinet. The fan tray contains 4 230V fans.

The cabinet also comes with two vertical cable organizers, additional rail mounting accessories, M6 cage nuts and blank input panels.

Features:
- Manufacturer: Lanberg,
- Manufacturer code: FA01-8042-23B,
- Cabinet type: freestanding,
- Body color: Black RAL9004,
- Height: 42U,
- Cabinet dimensions (W x D x H): 800x1000x2047.5 mm,
- Height (top panel - bottom panel): 1968.5 mm,
- Height (top panel - floor): 2041.5 mm,
- Height (top panel - ground including screws): 2047.5 mm,
- Package dimensions (W x D x H): Top and bottom - 83x102x12 cm, Door -83x190x9.5 cm, Frame - 80x196x25 cm, Vertical cable routing - 18.5x190x11.5 cm,
- Floor panel: 4 casters with brake + adjustable feet,
- Internal spacing between rack rails: 450 mm,
- Rack rail hole spacing width: 465 mm,
- External width spacing between rack rails: 500 mm,
- Load capacity: up to 800 KG,
- Degree of protection: IP20,
- Top with fan shelf: 4x 230 V fans included in top cover,
- Door type: Front - Perforated, Rear - Perforated,
- Standards: ANSI/EIA RS-310D, IEC297-2, DIN41494; PART1 & PART7, ETSI,
- Material: high quality cold rolled steel, powder coated,
- Sheet thickness: front door - 1.5 mm; vertical mounting rails - 2.00 mm; mounting profile - 2.00 mm; others - 1.50 mm - 1.20 mm,
- Cable entry panel: Top, Bottom (adjustable),
- Package includes: accessory bag, locks for front and rear doors and two side panels, 20 M6 cage nuts, 2 vertical cable entry panels, grounding kit (2x cables).

A szekrény típusa
Szabadon álló
Méret
19"
ICT magasság
42 U
Összeszerelés típusa
Összeszerelt
Munkamélység
860 mm
Első ajtó típusa
Perforáció
Hátsó ajtó típusa
Perforáció
Ajtó típusa
Egylevelű
Maximális elülső ajtónyílási szög
215 °
Maximális statikus terhelés
800 kg
Slot összeg a rajongók számára
4
Függőleges sínek száma
4
Termosztát
Nem
LCD panel
Nem
Színes
Fekete
RAL szín
RAL9004
Időjárásálló minősítés
IP20
Első ajtó vastagsága
1.5 mm
Hátsó ajtó vastagsága
1.5 mm
Felső és alsó panel vastagsága
1.2 mm
Oldalpanel vastagság
1 mm
Szerelősínek vastagsága
2 mm
Vázvastagság
1.2 mm
Egyéb elemek lemezvastagság
1.2 mm
Mélység
1000 mm
Szélesség
800 mm
Magasság
2047.5 mm
Súly
121 kg
Standard
ANSI/EIA RS-310-D, DIN 41491/1. RÉSZ, DIN 41494/7. RÉSZ, ETSI, IEC297-2:1982
Földelés részletei
Első ajtó, Hátsó ajtó, Keret
Tartalmazott tartozékok
Első zár, Földelő kábel, Függőleges kábelkezelő panel x2, Hátsó zár, Kerekek fékkel, Lábak, M6-os csavarok, Oldalzárak, Szellőzőpanel (4 ventilátor)

Fájlok letöltése

Termékkártya EN
Termékkártya PL
